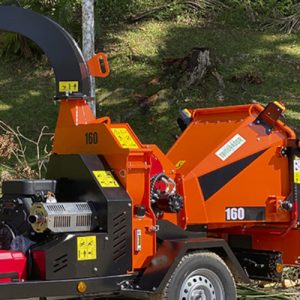

D16-Disk Wood Chipper

A powerful 35hp road towable wood chipper

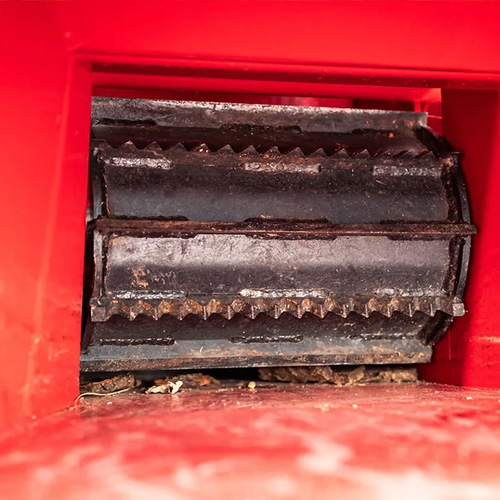

  • Hinged yoke assembly with a single 245mm diameter x 300mm wide feed wheel;
  • 25 liter steel hydraulic tank with filters for both filling and return;
  • 35 horsepower gas engine (Includes 1 year warranty);
  • Hydraulic flow control for feed wheel rate adjustment- IFS control system;
  • 360 degree manual swivel discharge with 12″ adjustable chip deflector;
  • This wood chipper is a powerful, compact unit designed for tree care services, rental companies, and property owners catering to brush cleanup, tree pruning, and backyard applications. Its sub-750kg weight make it easy to be towed and maneuverable, so even light trucks can easily pull and position this chipper around job-sites. The Model D16 can quickly and easily process a steady diet of trees up to 160MM in diameter.



The JONCO D16 is commercial disk wood chipper for both tree services performing medium-duty trimming and rental stores looking for a high- production, low-maintenance rental unit. A wide throat opening and powerful horizontal feed wheels help this overachieving chipper process stubborn branches and small trees without difficulty. And the durable construction means this wood chipper will withstand the daily stress of chipping for years to come.

Backup with in time on-line service, 3 years limited warranty

As manufacturer, we have full range of spare parts as backup for users all over the world, plus we have video or live on-line service for all necessary request from our users, for which ensure our warranty can be properly fullfilled.

Easy, safe and fast

With gasoline engine options and straightforward controls, using the Model D16 will be easy for rental customers or seasoned chipping professionals. Users will enjoy the simple operation, iFS feed system, and the directional control around feeding hopper, which offer full control and an unhindered approach to getting the job done quickly and tidily.

Maintenance saving

The daily maintenance items are easy to access on this unit. so daily maintenance is quick and simple with NOTICE label around operation site. Bolt-in knives are easy to change through the chipper hood, and all service areas are conveniently located.

Easy to feed, easy to chip

From hard-to-manage limbs to stringy material, the D16 can crush and fatten material into an opening nearly twice as wide as competitive units at a fast feed rate.

Material is chipped at 90-degree angle to the chipper disc, making it effective at

processing brushy or viney material. Trimming and extra chain saw prep work can be reduced. And a wide infeed tray allows material to flow smoothly into the chipper.

Powerful and compact

This Model is a powerful, compact unit designed for tree care services, rental companies, and property owners catering to brush cleanup, tree pruning, and backyard applications. Its sub-750kg weight make it easy to be towed and maneuverable, so even light trucks can easily pull and position this chipper around job-sites. The Model D16 can quickly and easily process a branches up to 160MM in diameter.



Specifications

Length 3.36 m / 11 ft ; 3.17m /10.5 ft while transport
Width 1.39 m / 4.6 ft
Height 2.18 m / 7.15 ft
Weight 730kg / 1610 lbs

Feeding

Hopper 1.24m /4.1 ft wide, foldable with bracket
Throat (w*h) 30*16 cm / 11.8*6.3 inch
Feeding iFS no-stress system
Roller Single on top with teeth combi.

Chipping

System Disk with open top
Dia. 67cm / 26.5 inch
Blade 2 reversible blades
Anvil Bottom and side anvils

Output

Output 360 degree rotatable Trailer Speed limits 60 mph/ 96 kmph
Deflector 90 degress deflectable

Work spec.

Load 12-16 cbm/hour Hydraulic oil tank 25L
Chips 5-15mm

Power

Gasoline 35hp, V-twin engine Fuel tank 25 L

Operate manual

Version 2401
